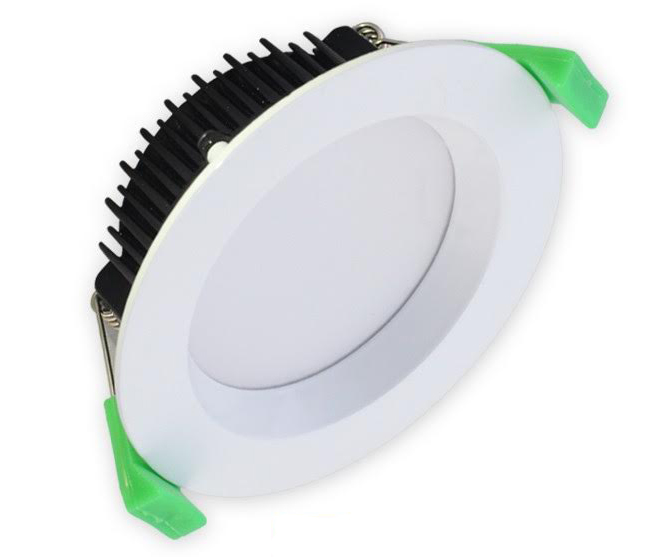

13 Watt Dimmable Downlight

Dimensions

Ø101*3mm
cutout 90mm

Electrical Specifications

Warm white 3000K 850 lumens 100 degree beam
Neutral White 4000K 900 lumens 100 degree beam

Features

Driver specifications
Input Voltage AC200-240V
Frequency 50HZ
Input rated Voltage AC230V
Efficiency 75%
No load wattage ≤1W
Total load Wattage 10W±1W
Power Factor ≥0.9
Rated input current ≤0.06A
No load output Voltage DC42V
No load output Voltage range DC39-46V
Full load output Voltage DC30-33V
Rated output current 240mA
Output current range 240mA±5%
Tolerance ±5%
Current output tolerance ±5%
Dimming range 10%-100%
Dimmer Triac dimmers
Withstand voltage AC3750V

Colours

Casing Colours

White

Lenses

Accessories

Other Applications



Category:

Description

Benefits

  • Extremely energy efficient reducing the amount of C02 emissions being emitted into the environment
  • Up to 90% savings in energy bills
  • No changing of globes for decades – original light life will last 50,000 hours approx.
  • No disposal or landfill issues
  • A cool beam is generated – no more burning of foliage, pets, wondering fingers, wildlife, timber structures etc
  • Ambient temperature: -200C — 400C
  • Voltage drop is minimal on long runs
  • Reduction in household carbon footprint
  • No UV and IR radiation
